Architectural Toughened Glass
Toughened glass, also known as reinforced glass, Tempered glass is a high‑performance safety glass produced through a controlled thermal or chemical strengthening process. It is essentially a type of prestressed glass in which a strong compressive stress layer is formed on the surface. This engineered stress enables the glass to effectively resist external forces by offsetting tensile stress, significantly improving its load‑bearing capacity and durability. As a result, toughened glass offers outstanding resistance to wind pressure, thermal shock, sudden temperature changes, mechanical impact, and various environmental conditions. In the event of breakage, it fragments into small, blunt particles that minimize the risk of injury, making it ideal for safety‑critical architectural and industrial applications. It is important to distinguish toughened glass from FRP (fiber‑reinforced plastic), as the two materials differ greatly in composition and performance. The maximum processing size available for toughened glass is 3660mm ×16000mm, supporting large‑scale façade, glazing, and structural design requirements.
Toughened Glass Characteristics
- Excellent safety: In case of breakage, the glass disintegrates into small, blunt particles that greatly reduce the risk of injury
- Super Strength: Toughened glass is more than four times stronger than annealed glass of the same thickness, providing excellent resistance to bending & impact.
- Enhanced Wind Load Resistance: With wind‑pressure resistance 1.5 to 3 times that of annealed glass, it is ideal for high‑rise and exterior applications.
- Excellent Thermal Stability: Capable of withstanding abrupt temperature changes of up to 300°C, ensuring reliable performance under extreme thermal conditions.
Specification of Toughened Glass
| No | Item | Specification |
|---|---|---|
| 1 | Max Glass Size | 2500mm ×7800mm （larger can be tailed） |
| 2 | Glass Thickness | 2-19mm （thicker can be tailed） |
| 3 | Float Glass Color | Clear, Ultra Clear, French Green, Dark Green, Euro Grey, Dark Grey, Ford Blue, Dark Blue, Ocean Blue, Euro Bronze, Dark Bronze, Golden, Pink, Yellow, Milk White, Red, and customized colors |
| 4 | Composite Process | Toughened, Insulated, Semi-Toughened, Digital Printing, Curved, Laminated |
| 5 | Quality Standards | GB 15763.2（China Standard）/ EN 12543（EU Standard）/EN 12600（EU Impact Standard）/ANSI Z97.1（US Standard）/AS/NZS 2208（Australia/New Zealand Standard） |
Lamination Glass Application

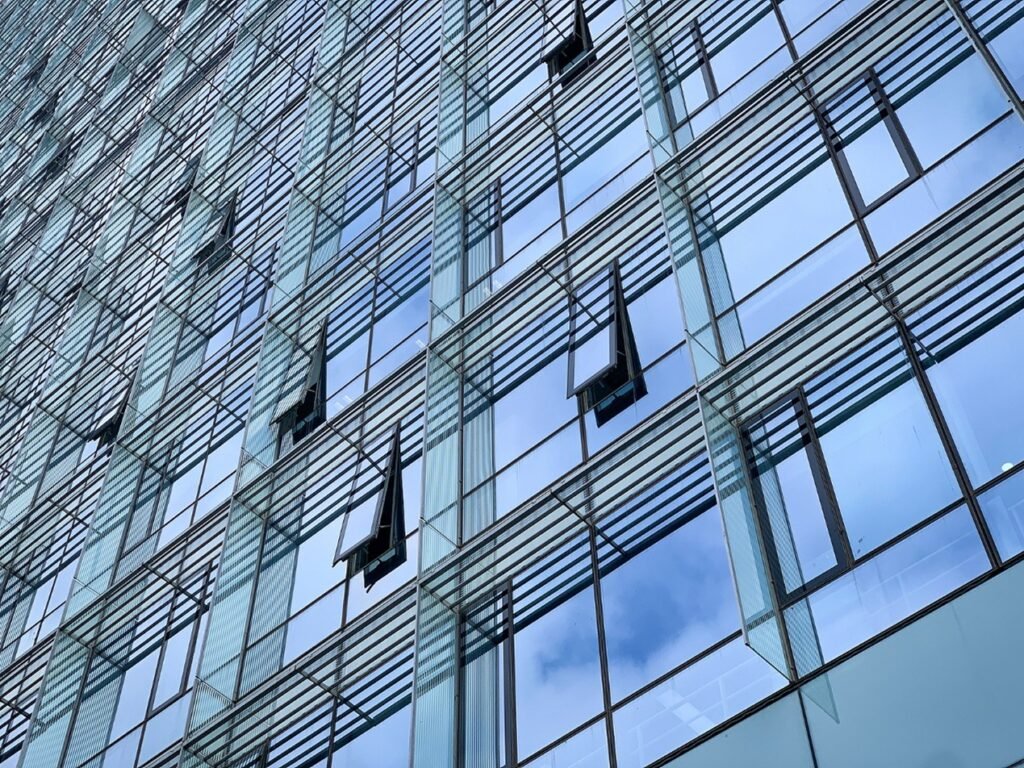

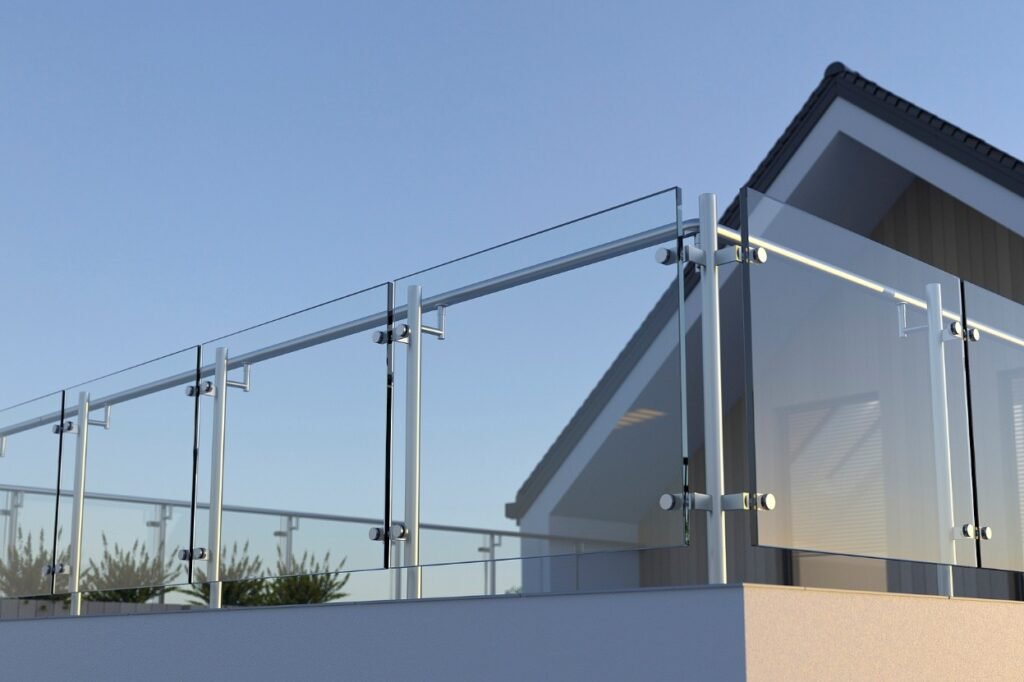

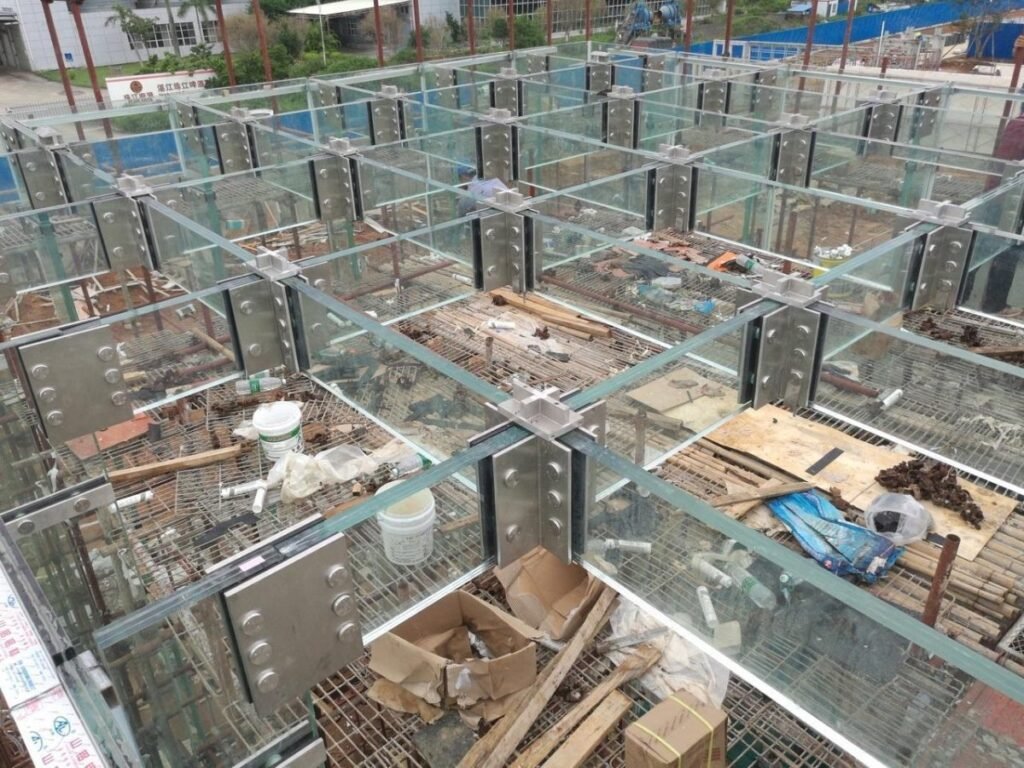

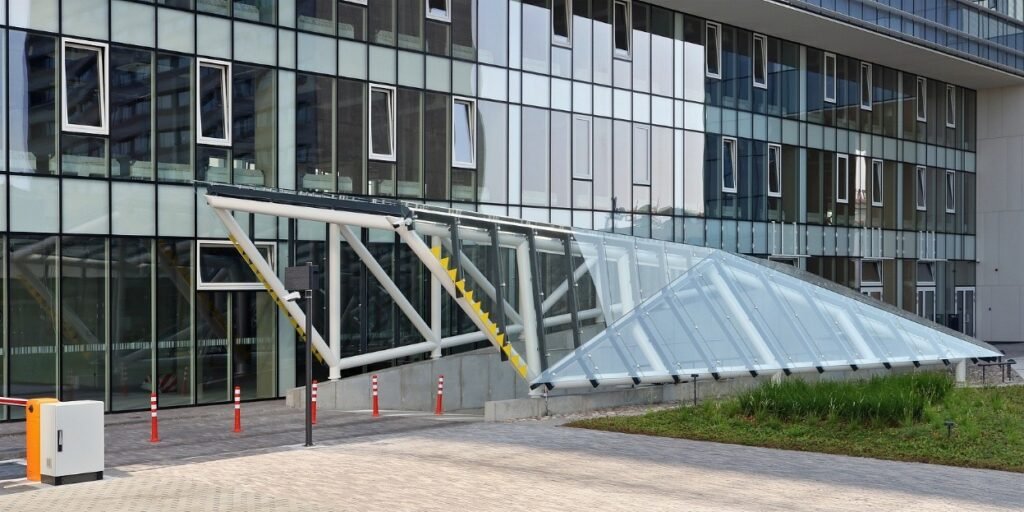

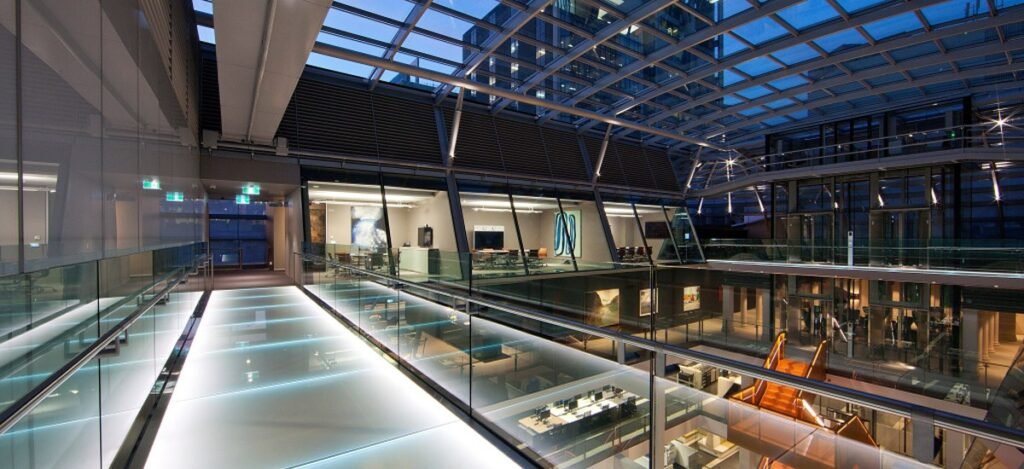

Toughened glass is extensively utilized across modern architectural and high‑performance environments due to its exceptional strength, safety characteristics, and resistance to impact and thermal stress. It is commonly used in windows and doors, skylights, façades, and curtain wall systems where increased durability and safety are required. Its high mechanical strength makes it a preferred choice for glass floors, stair treads, and railings in both commercial and residential buildings. Toughened glass is also widely applied in storefronts, counters, and display areas that demand transparency without compromising security. Additionally, it is frequently used in swimming pool enclosures and other settings that require superior stability, durability, and reliable safety performance.

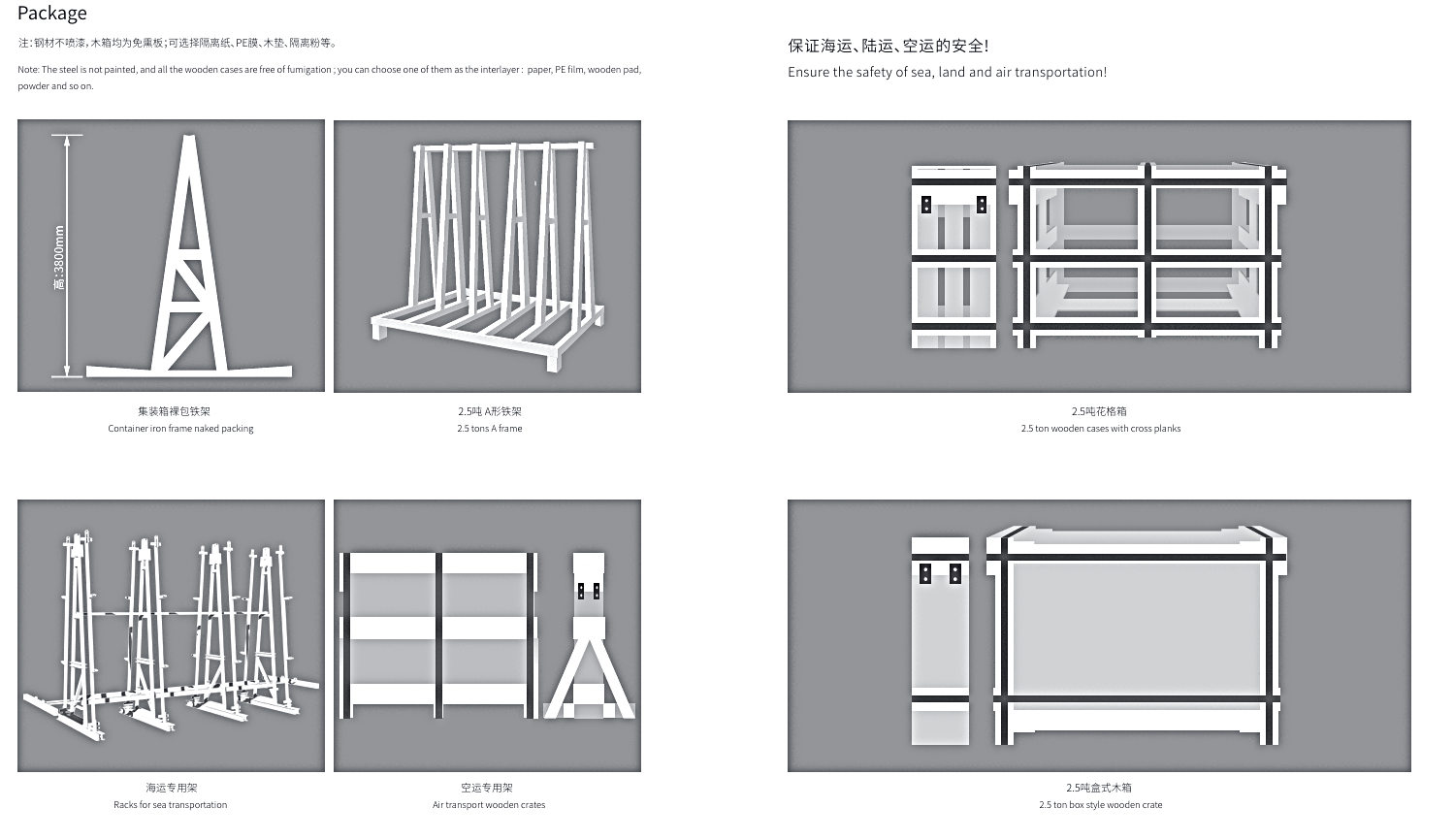

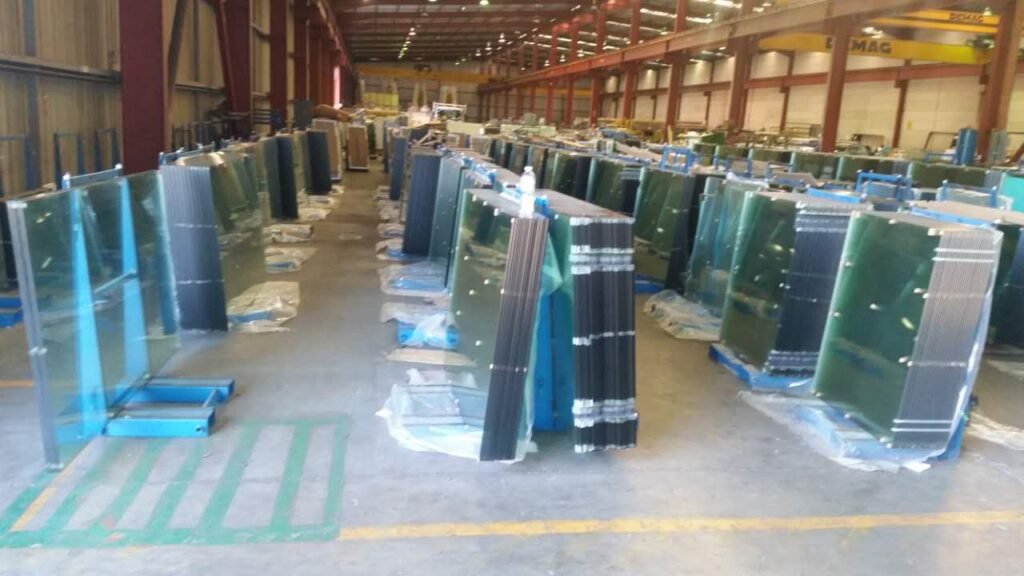

Packaging Details

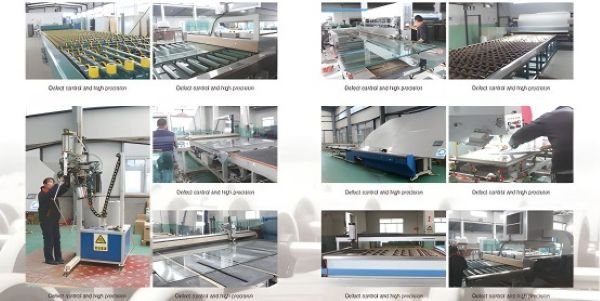

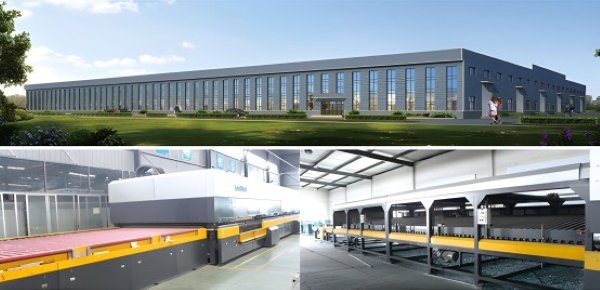

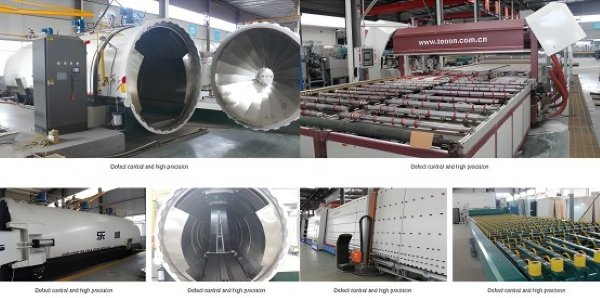

Our Production Capacity
